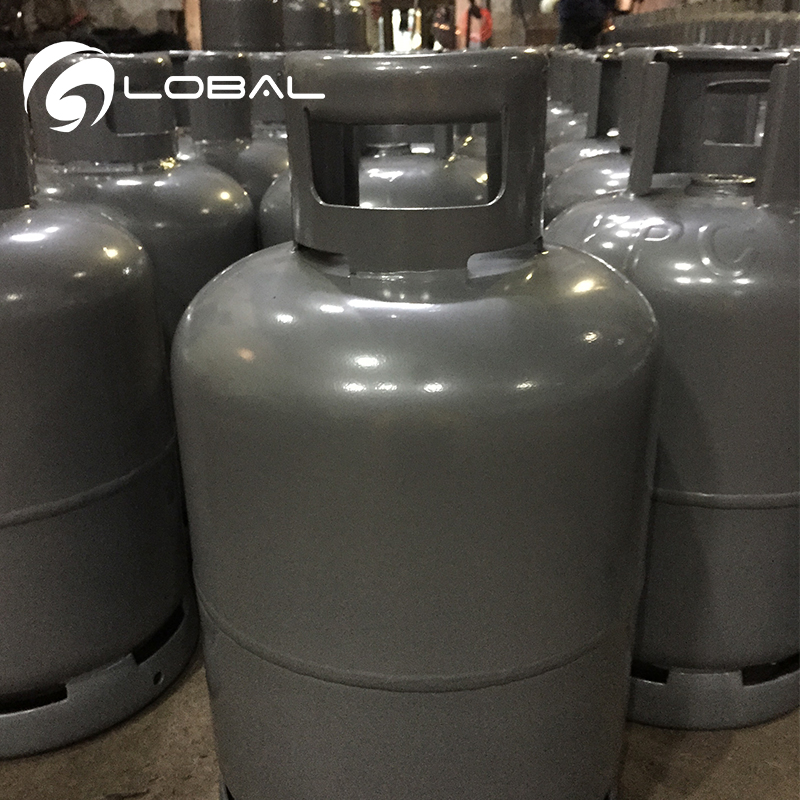

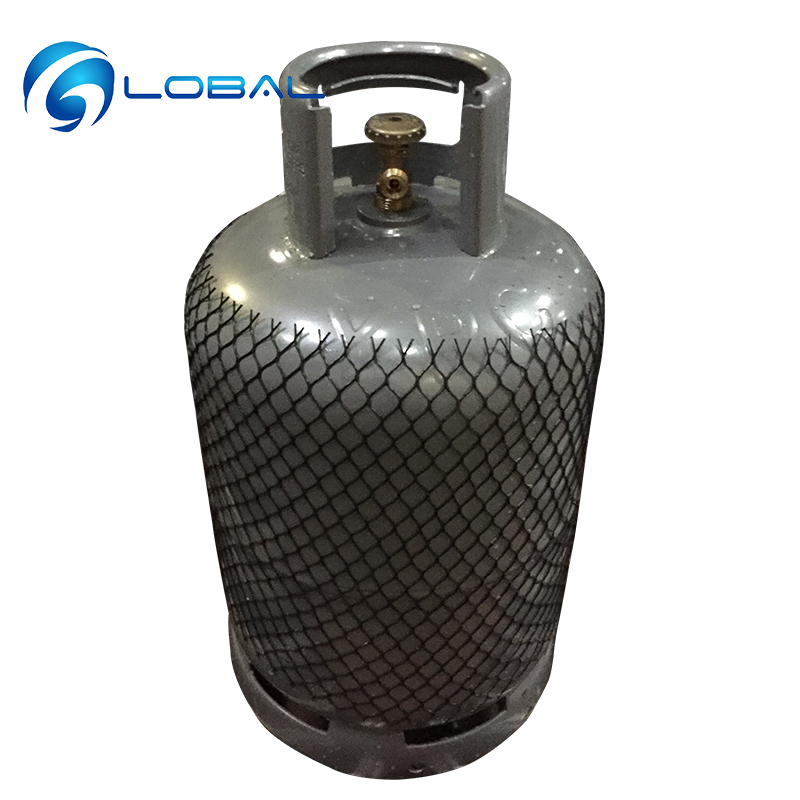

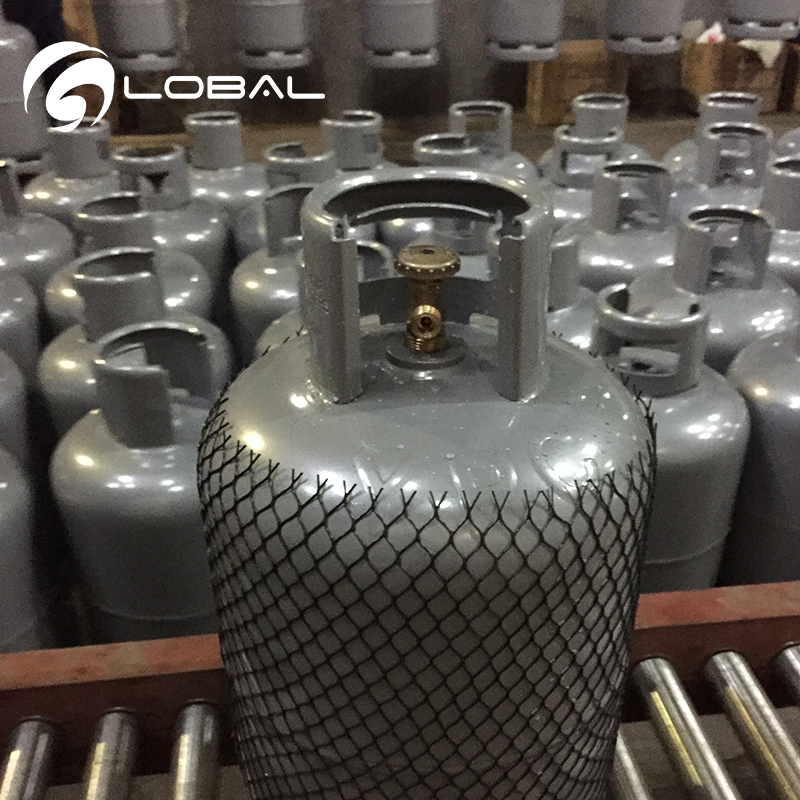

中东也门液化气钢瓶12.5kg LPG cylinder
产品参数：
condition(使用环境): -40~60℃
Media(充装介质): LPG
Raw Material(瓶体材料): HP295/Q235
body thickness (瓶体厚度): 2.75/3mm
brass valve(铜阀门): w21.8
Work pressure(工作压): 18BAR
Test Pressure(测试压): 34BAR
Water Capacity(水容积): ≥26.5L
QTY/20FT (20FT装柜量): 616pcs
QTY/40HQ (40HQ装柜量): 1386pcs
Cylinder color (颜色): optional
Packing(包装): black net
Total Height (总高)(mm): 557±8
Body Dia (瓶体直径) (mm): 310±1
Collar Dia (护罩直径) (mm): 150±3
Collar Height (护罩高度) (mm): 110±3
Foot Ring Dia (底座直径)(mm): 310±3
Foot Ring Height(底座高度)(mm): 60±3
