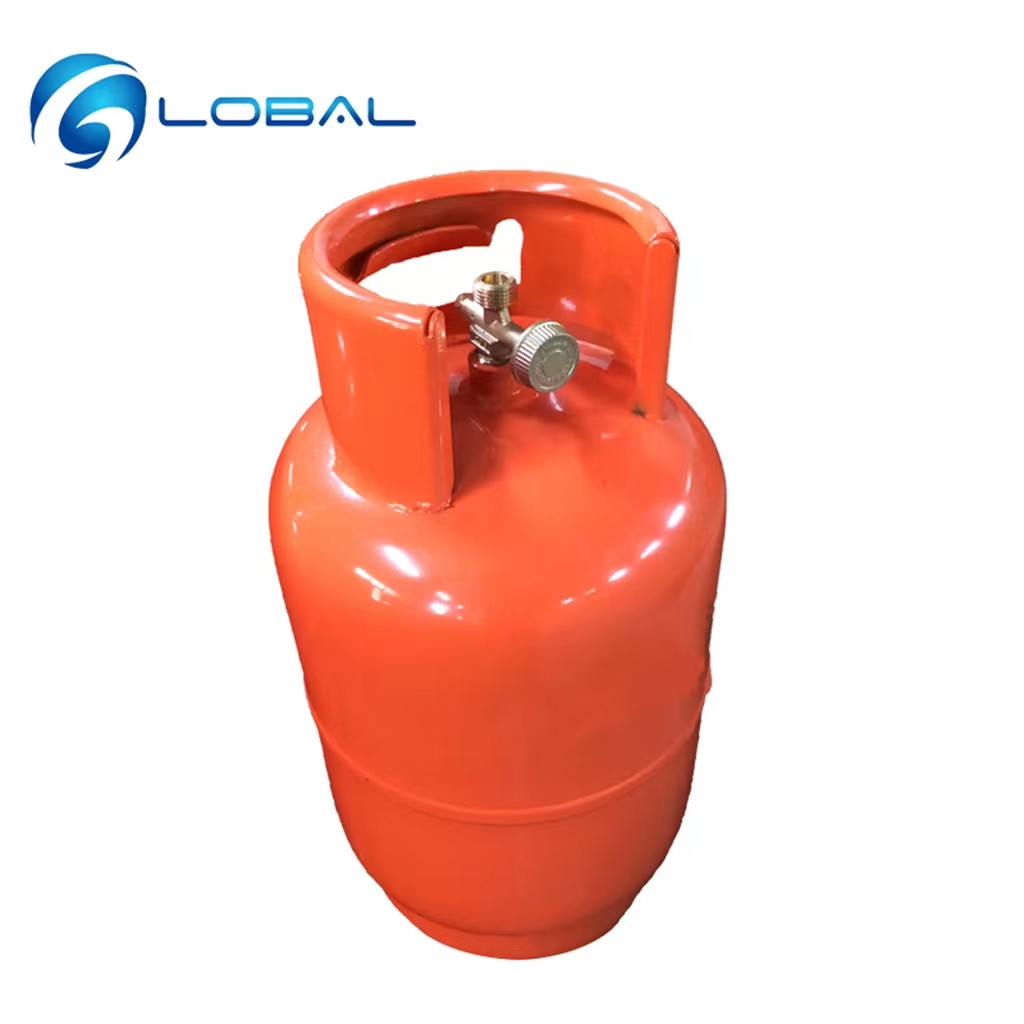

5KG液化气钢瓶/液化气缸/液化石油气瓶厂家
产品参数：
condition(使用环境): -40~60℃
Media(充装介质): LPG
Raw Material(瓶体材料): HP295/Q235
body thickness (瓶体厚度): 1.8mm

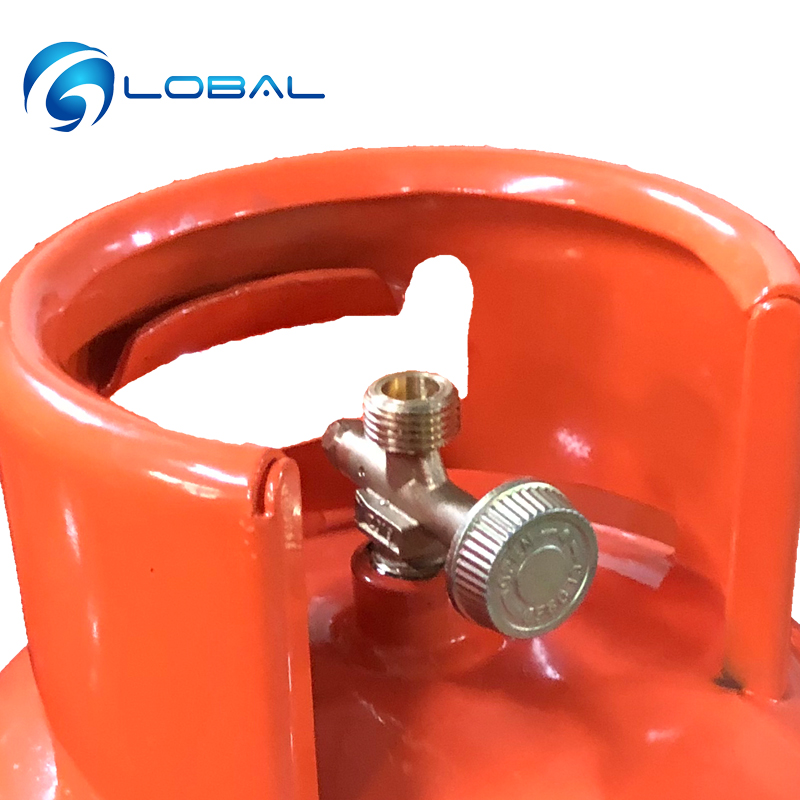

brass valve(铜阀门): PZ19.8, W21.8
Work pressure(工作压): 18BAR
Test Pressure(测试压): 30BAR
Water Capacity(水容积): ≥12L
QTY/20FT (20FT装柜量): ≈1220pcs
QTY/40HQ (40HQ装柜量): ≈2958pcs
Cylinder color (颜色): optional
Packing(包装): black net
Total Height (总高)(mm): 425±5
Body Dia (瓶体直径) (mm): 230±1
Collar Dia (护罩直径) (mm): 160±3
Collar Height (护罩高度) (mm): 90±3
Foot Ring Dia (底座直径)(mm): 200±3
Foot Ring Height(底座高度)(mm): 40±3
