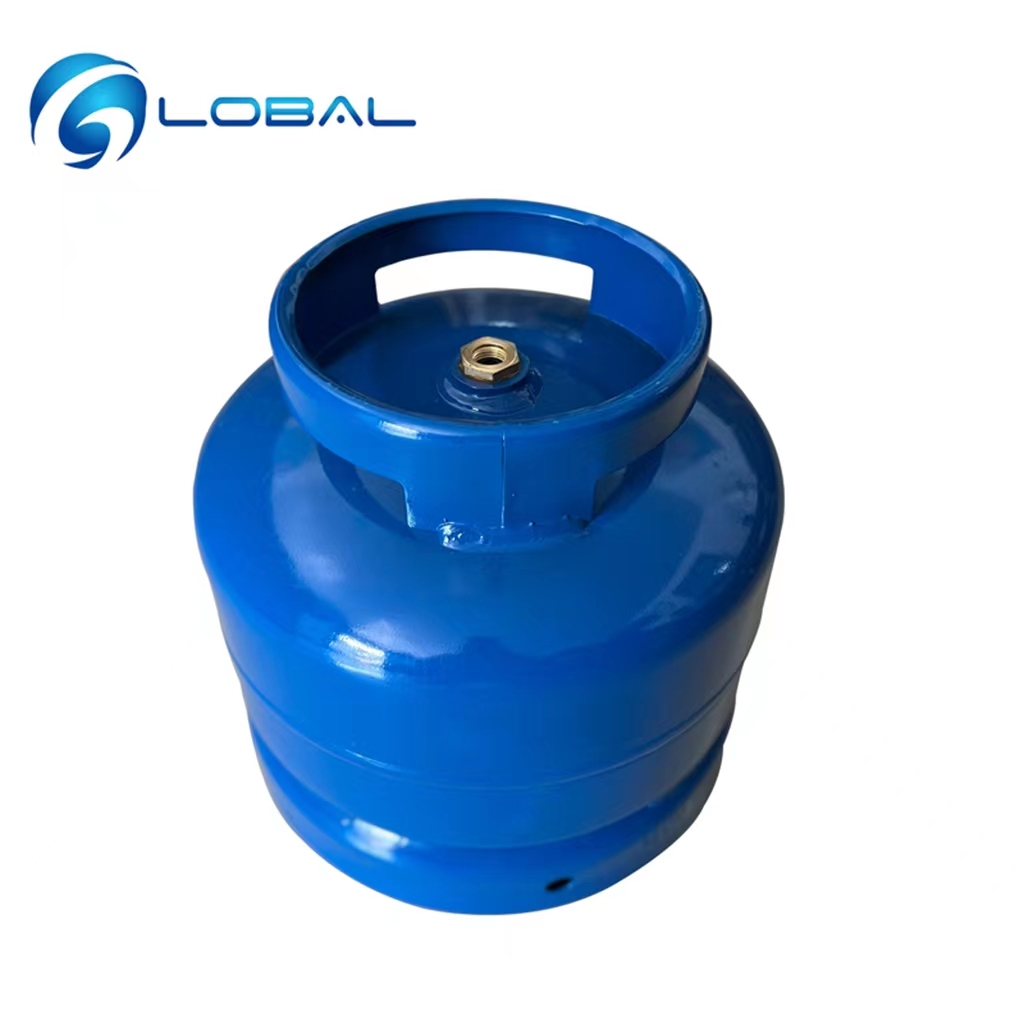

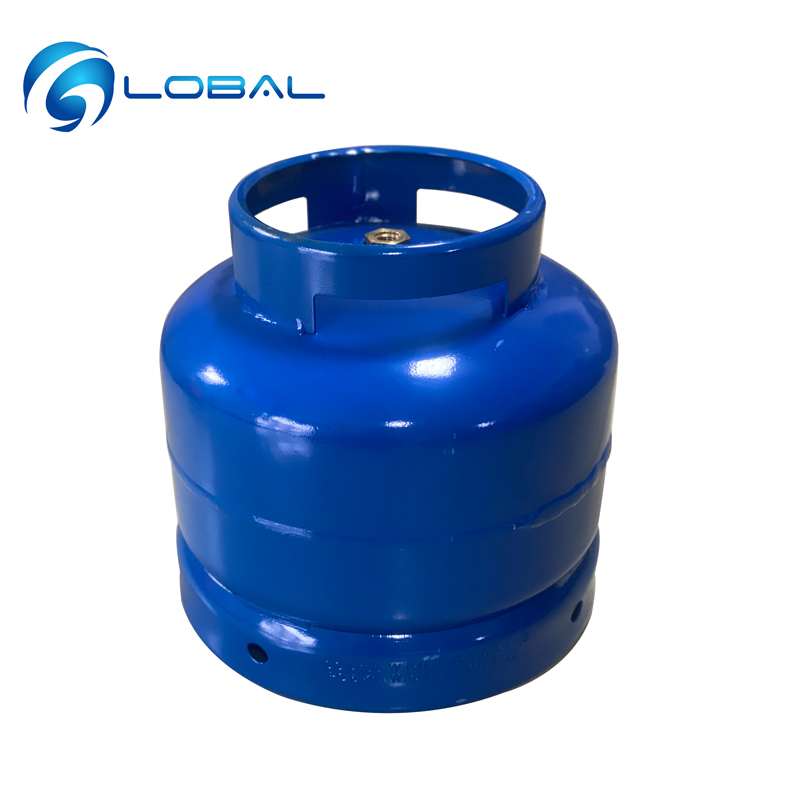

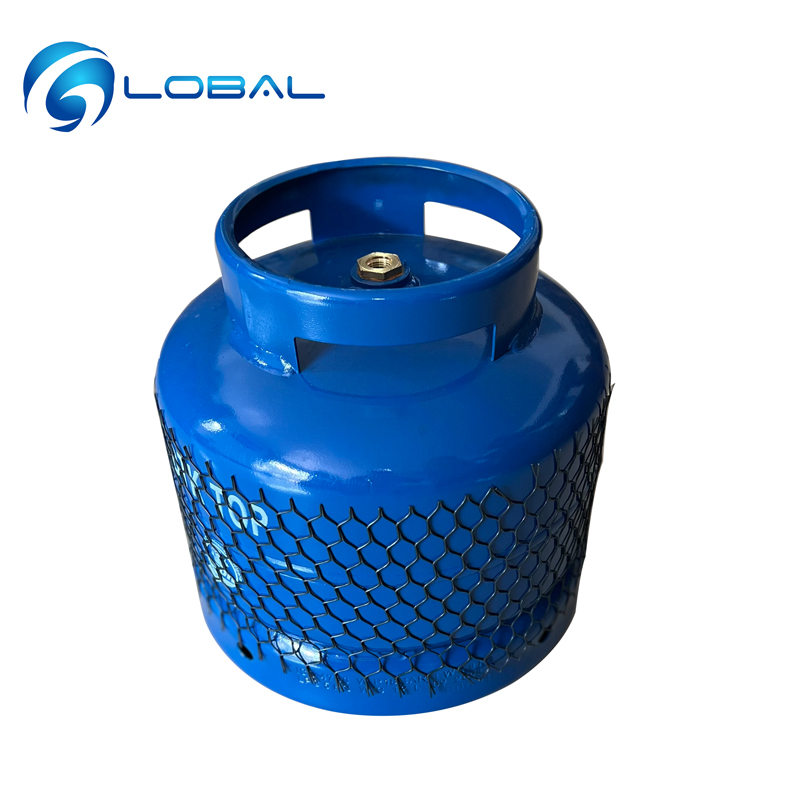

非洲胖5kg液化气钢瓶/煤气罐/液化气罐
产品详情：
condition(使用环境): -40~60℃
Media(充装介质): LPG
Raw Material(瓶体材料): HP295/Q235
body thickness (瓶体厚度): 1.8mm
brass valve(铜阀门): M16*1.5
Work pressure(工作压): 18BAR
Test Pressure(测试压): 34BAR
Water Capacity(水容积): ≥12L
QTY/20FT (20FT装柜量): ≈1355pcs
QTY/40HQ (40HQ装柜量): 3290pcs
Cylinder color (颜色): optional
Packing(包装): black net
Total Height (总高)(mm): 285±5
Body Dia (瓶体直径) (mm): 300±1
Collar Dia (护罩直径) (mm): 195±3
Collar Height (护罩高度) (mm): 55±3
Foot Ring Dia (底座直径)(mm): 300±3
Foot Ring Height(底座高度)(mm): 63±3
