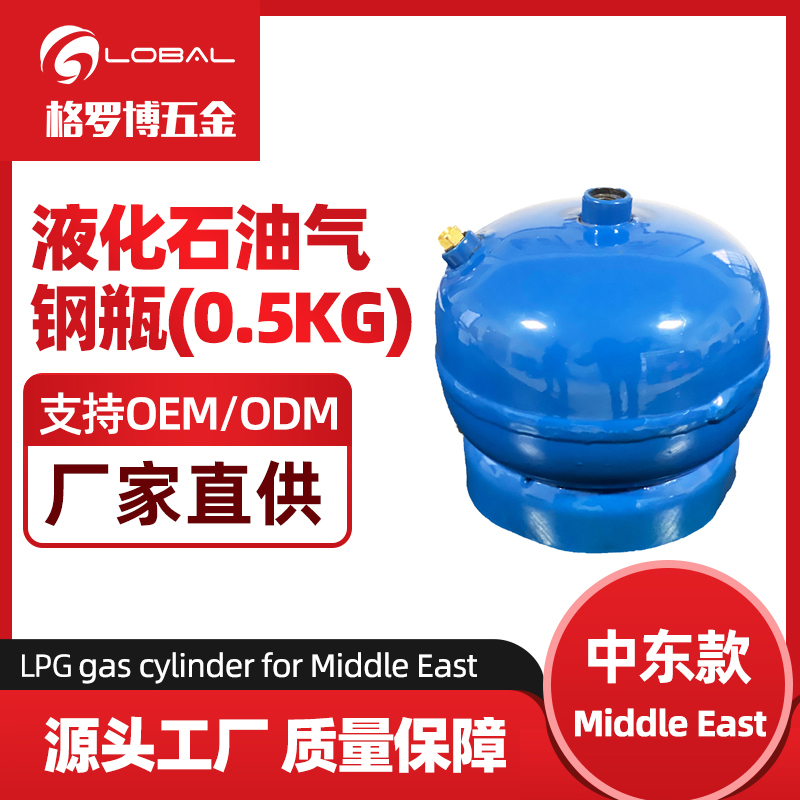

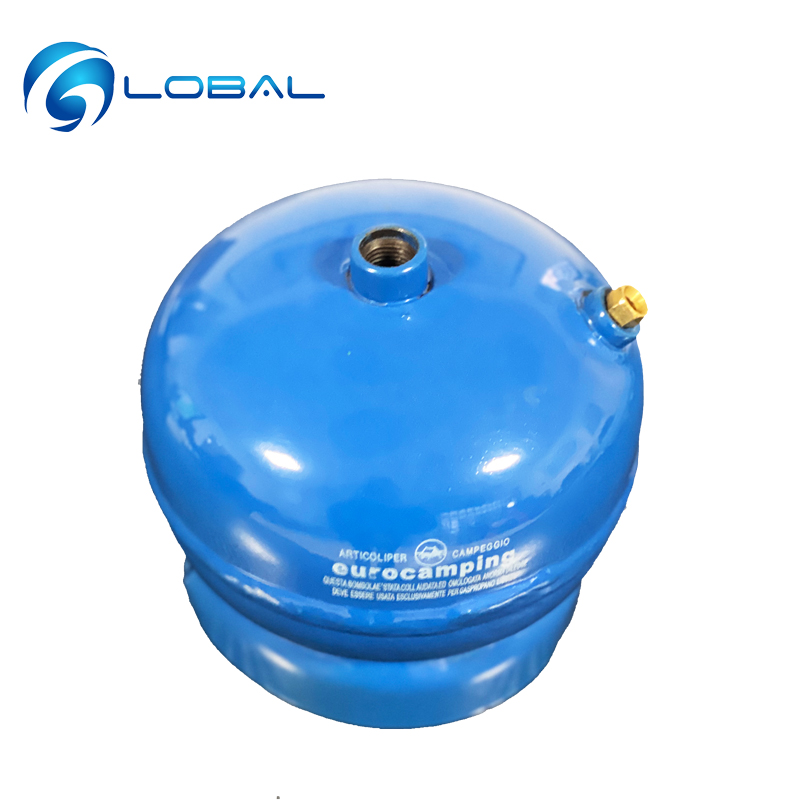

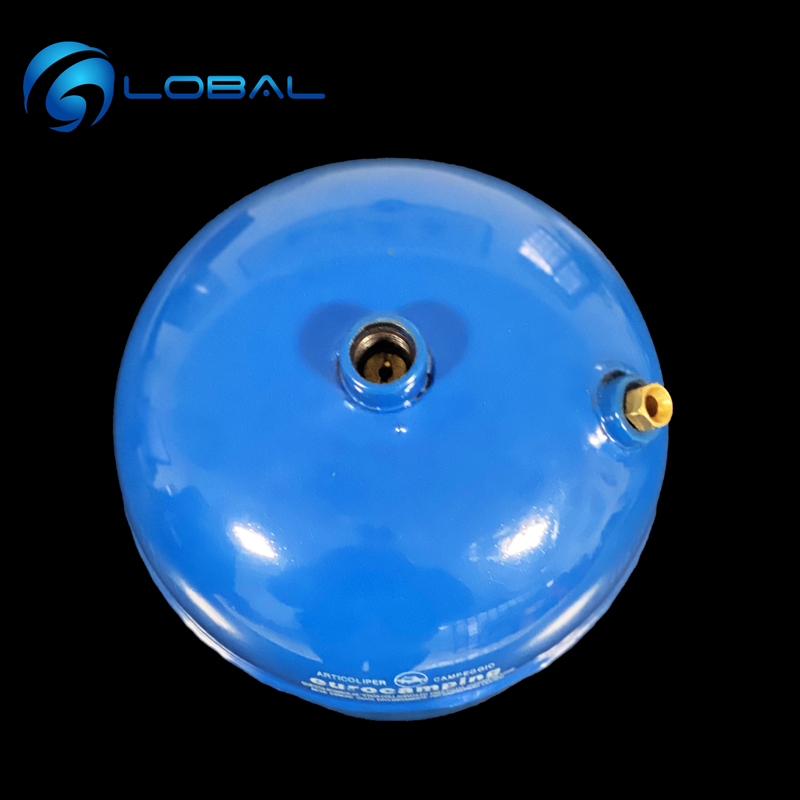

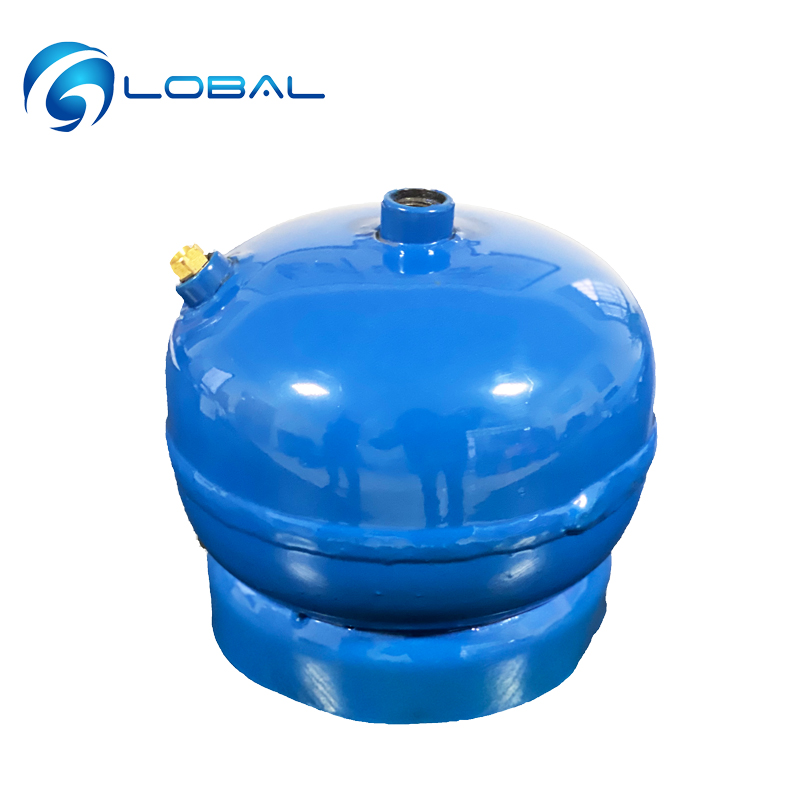

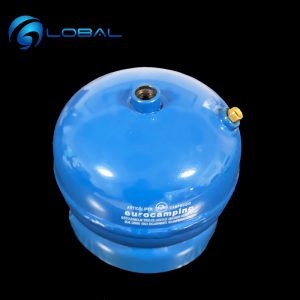

中东0.5kg液化石油气钢瓶/煤气罐/液化气罐
产品参数：
condition(使用环境): -40~60℃
Media(充装介质): LPG
Raw Material(瓶体材料): HP295/Q235
body thickness (瓶体厚度): 1.8mm
brass valve(铜阀门): M14*1.5
Work pressure(工作压): 18BAR
Test Pressure(测试压): 34BAR
Water Capacity(水容积): ≥1.2L
QTY/20FT (20FT装柜量): ≈9120pcs
QTY/40HQ (40HQ装柜量): ≈21000pcs
Cylinder color (颜色): optional
Packing(包装): 12PCS/CARTON, CTN SIZE:43.5*28.5*26.5cm
Total Height (总高)(mm): 130±5
Body Dia (瓶体直径) (mm): 140±1
Collar Dia (护罩直径) (mm): /
Collar Height (护罩高度) (mm): /
Foot Ring Dia (底座直径)(mm): 125±3
Foot Ring Height(底座高度)(mm): 29±3
